DESCRIPTION
The HU5-B unit suspends equipment within the patient area and is designed to enable the user to move the services to the optimum position for the procedure or treatment being performed on the patient. It is intended for use by qualified trauma, intensive/high care and emergency unit nursing staff.
AREAS OF USE:
Intensive Care, NNICU, High Care Wards, Resuscitation, Recovery, Trauma and Emergency Rooms
DESIGN

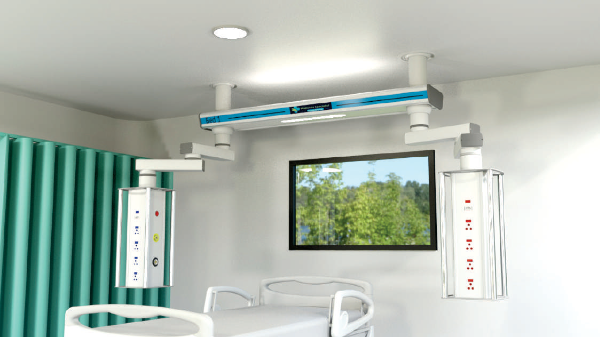

The Pendant Service system is ceiling mounted and is intended to supply one or more of the following medical services via one fixed pillar and another movable tray service pillar which is attached to a double articulated arm:
- electrical power up to 240 volts
- medical gases, such as oxygen, nitrous oxide, carbon dioxide
- low pressure medical air for patient ventilation
- high pressure medical air for driving other medical devices
- vacuum and/or anaesthetic gas scavenging services.
INSTALLATION
The unit can be fitted with equipment trays and equipment poles for medical equipment, monitors, life support systems, medical attachments etc.The movable unit is designed to enable the user to move the services to the optimum position for the procedure or treatment being performed on the patient.
NORMS & CERTIFICATIONS
ISO13485
